Ceph: activate RBD readahead

RBD readahead was introduced with Giant.

During the boot sequence of a virtual machine if the librbd detects contiguous reads, it will attempt to readahead on the OSDs and fill up the RBD cache with the content. When the OS reads it will get those reads from the librbd cache. Parameters that control the readahead:

rbd readahead trigger requests = 10 # number of sequential requests necessary to trigger readahead.
rbd readahead max bytes = 524288 # maximum size of a readahead request, in bytes.
rbd readahead disable after bytes = 52428800

Testing procedure

The way I tested this is rather simple, I simply calculated the time it took to SSH into the virtual machine. I ran this test 10 times with and without the readahead in order to get an average value

Execution script:

for i in $(seq 1 10)
nova delete leseb > /dev/null 2>&1
sleep 5
nova boot --flavor m1.small --image 19dab28e-5d13-4d13-9fd4-dbc597fdccb7 leseb > /dev/null 2>&1
time ./checkup.sh 22

Checkup script:



while true
python -c "import socket;s = socket.socket(socket.AF_INET, socket.SOCK_STREAM);s.connect(('$host', $port))" > /dev/null 2>&1 && break || \
echo -n "."

if [[ ${counter} == ${max} ]];then
echo "Could not connect"
exit 1
(( counter++ ))

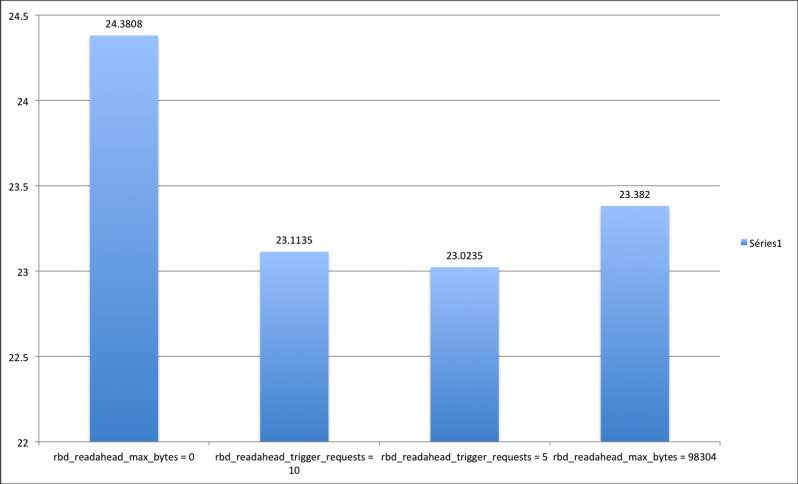

Boot time comparison

At some point, I tried to look at the virtual machine logs and analysed the block size. I was hoping that using a more accurate value for rbd_readahead_max_bytes would bring me some befenit. So I queried the admin socket to hopefully get something useful about the reads that happen during the boot sequence:

$ sudo ceph --admin-daemon /var/run/ceph/guests/ceph-client.cinder.463407.139639582721120.asok perf dump
"flush": 0,
"aio_rd": 5477,
"aio_rd_bytes": 117972992,
"aio_rd_latency": {
"avgcount": 5477,
"sum": 16.090880101

Unfortunately I don’t see to get anything interesting, ideally I’d have gotten average reads. My last resort is to log every single read entries of the librbd. I used one of my previous article as a reference. Over 9903 reads during the boot sequence, it resulted the average read block size was 98304. I eventually decided to give it a try.

Here are the results:

My second optimisation attempt was clearly the most successful since we are almost below 23 seconds to boot a virtual machine. In the meantime the default values are not that bad and sound pretty reasonnable. Thus sticking with the default should not be an issue.
